Name: IL 3685-1E
Brand: NVE Corp/Isolation Products
SKU: IL 3685-1E
Price: 6.80 USD
Availability: InStock

REF: IL 3685-1E NVE Corp/Isolation Products

IL 3685-1E

NVE Corp/Isolation Products

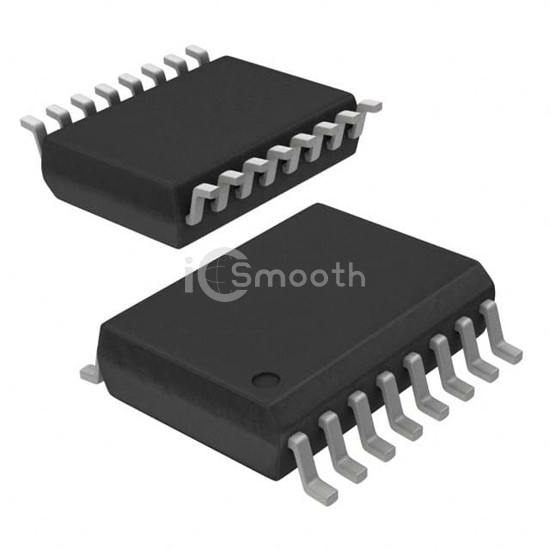

DGT ISO 2.5KV RS422/RS485 16QSOP

IL 3685-1E is a Digital Isolators manufactured by NVE Corp/Isolation Products. DGT ISO 2.5KV RS422/RS485 16QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, 4.5V ~ 5.5V, package / case 16-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,681

Tiered Pricing USD

1+ $6.8000 —

10+ $5.2690 -23%

25+ $4.8852 -28%

100+ $4.4634 -34%

300+ $4.3125 -37% BEST

Specifications

18 parameters

Product Status	Active
Technology	GMR (Giant Magnetoresistive)
Type	RS422, RS485
Isolated Power	No
Number of Channels	3
Inputs - Side 1/Side 2	2/1
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	30kV/µs

Data Rate	40Mbps
Propagation Delay tpLH / tpHL (Max)	30ns, 30ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	-
Voltage - Supply	3V ~ 5.5V, 4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package	16-QSOP
