NW-SW-VU-150-MH01

In Stock: 8,001

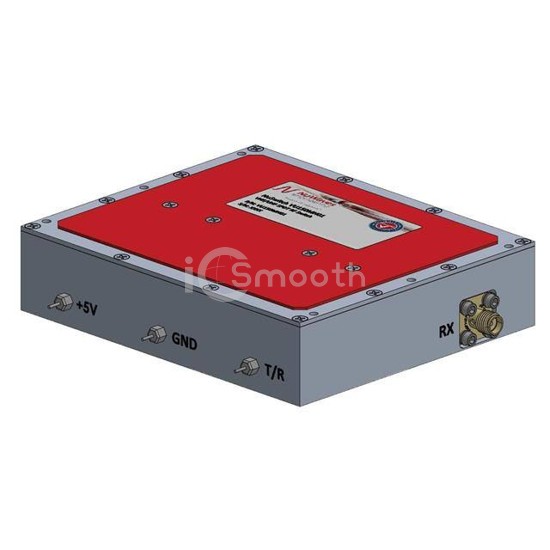

NW-SW-VU-150-MH01 - NuWaves Engineering - RF Switches
REF: NW-SW-VU-150-MH01 NuWaves Engineering
NW-SW-VU-150-MH01

NuWaves Engineering

50 TO 500 MHZ, 150 W CW, 4 S

NW-SW-VU-150-MH01 is a RF Switches manufactured by NuWaves Engineering. 50 TO 500 MHZ, 150 W CW, 4 S. Key specifications: operating temperature -40°C ~ 70°C (TC), voltage - supply 5V, package / case Module, SMA Connectors, frequency range 50MHz ~ 500MHz.

Datasheet Request a Quote

In Stock: 8,001

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSPDT
Frequency Range50MHz ~ 500MHz
Isolation39dB
Insertion Loss0.25dB
Test Frequency500MHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply5V
Operating Temperature-40°C ~ 70°C (TC)
Package / CaseModule, SMA Connectors
Supplier Device Package-
