TIP122

In Stock: 263

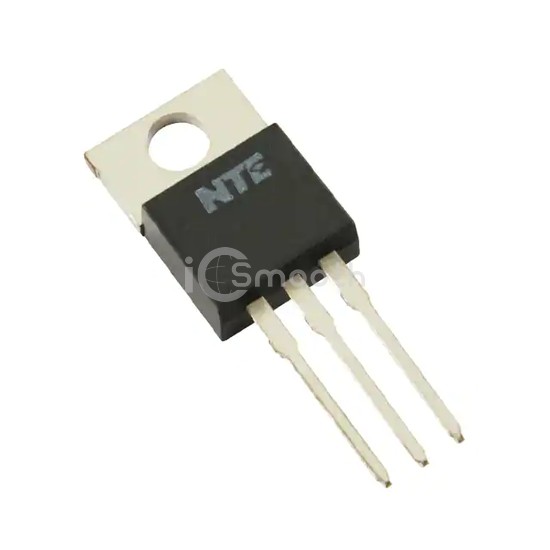

TIP122 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: TIP122 NTE Electronics, Inc
TIP122

NTE Electronics, Inc

TRANS NPN DARL 100V 5A TO220

TIP122 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN DARL 100V 5A TO220. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 263

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic4V @ 20mA, 5A
Current - Collector Cutoff (Max)500µA
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 3A, 3V
Power - Max2 W
Frequency - Transition-
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220
