NTE77

In Stock: 56

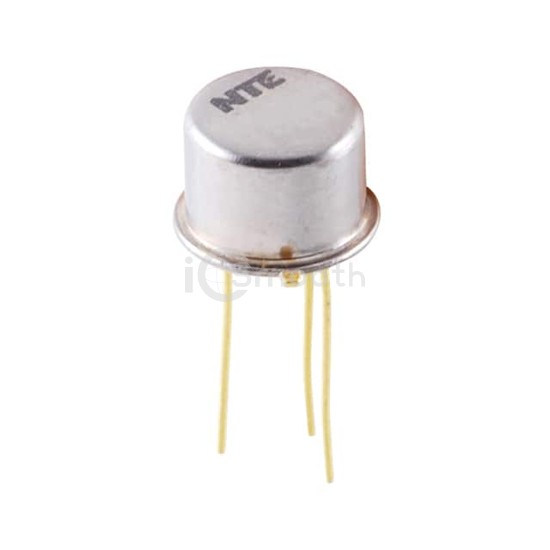

NTE77 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - RF
REF: NTE77 NTE Electronics, Inc
NTE77

NTE Electronics, Inc

RF TRANS NPN 30V 1.8GHZ TO39

NTE77 is a Transistors - Bipolar (BJT) - RF manufactured by NTE Electronics, Inc. RF TRANS NPN 30V 1.8GHZ TO39. Key specifications: mounting type Through Hole, operating temperature 200°C (TJ), package / case TO-205AD, TO-39-3 Metal Can, current - collector (ic) (max) 400mA.

Datasheet Request a Quote

In Stock: 56

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)30V
Frequency - Transition1.8GHz
Noise Figure (dB Typ @ f)2.7dB ~ 7dB @ 200MHz ~ 216MHz
Gain7.2dB
Power - Max3.5W
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 50mA, 15V
Current - Collector (Ic) (Max)400mA
Operating Temperature200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-39
