NTE74LS377

In Stock: 164

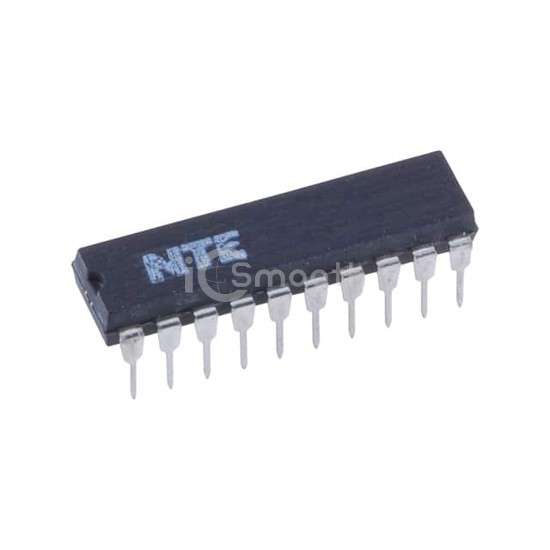

NTE74LS377 - NTE Electronics, Inc - Logic - Flip Flops
REF: NTE74LS377 NTE Electronics, Inc
NTE74LS377

NTE Electronics, Inc

IC FF D-TYPE SNGL 8BIT 20DIP

NTE74LS377 is a Logic - Flip Flops manufactured by NTE Electronics, Inc. IC FF D-TYPE SNGL 8BIT 20DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 20-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 164

Specifications

17 parameters
Product StatusActive
FunctionStandard
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency30 MHz
Max Propagation Delay @ V, Max CL27ns @ 5V, 15pF
Trigger TypePositive Edge
Current - Output High, Low400µA, 8mA
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Iq)28 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Supplier Device Package20-DIP
Package / Case20-DIP (0.300", 7.62mm)
