NTE74HCT14T

In Stock: 740

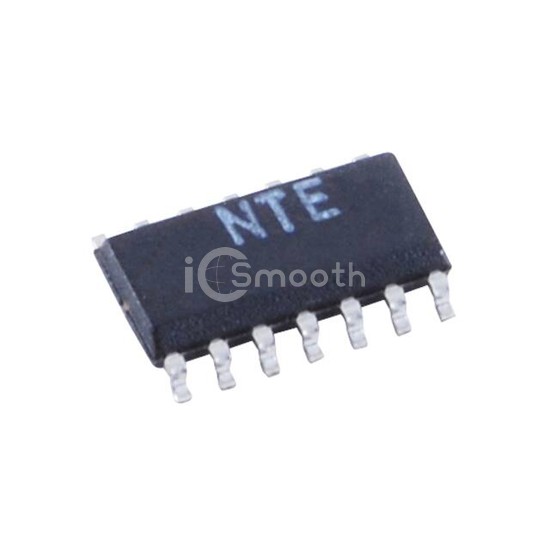

NTE74HCT14T - NTE Electronics, Inc - Logic - Gates and Inverters
REF: NTE74HCT14T NTE Electronics, Inc
NTE74HCT14T

NTE Electronics, Inc

IC INV SCHMITT 6CH 1-IN 14SOIC

NTE74HCT14T is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC INV SCHMITT 6CH 1-IN 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 740

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low4.8mA, 4.8mA
Logic Level - Low0.5V ~ 1.4V
Logic Level - High1.2V ~ 2.1V
Max Propagation Delay @ V, Max CL25ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
