NTE74HC273

In Stock: 276

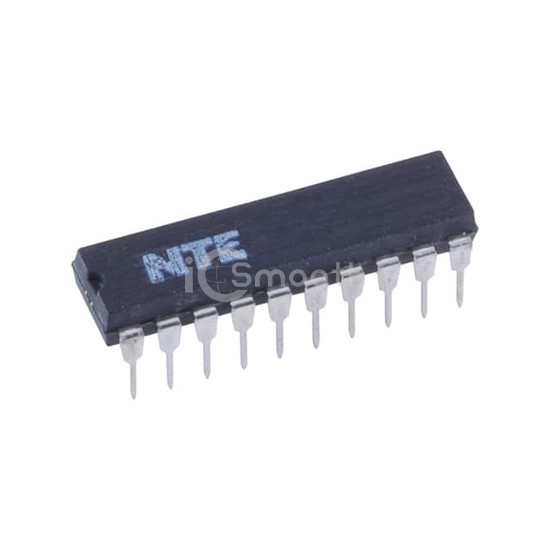

NTE74HC273 - NTE Electronics, Inc - Logic - Flip Flops
REF: NTE74HC273 NTE Electronics, Inc
NTE74HC273

NTE Electronics, Inc

IC FF D-TYPE SNGL 8BIT 20DIP

NTE74HC273 is a Logic - Flip Flops manufactured by NTE Electronics, Inc. IC FF D-TYPE SNGL 8BIT 20DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 20-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 276

Specifications

17 parameters
Product StatusActive
FunctionMaster Reset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency35 MHz
Max Propagation Delay @ V, Max CL26ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low7.8mA, 7.8mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)8 µA
Input Capacitance10 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device Package20-DIP
Package / Case20-DIP (0.300", 7.62mm)
