NTE74HC109

In Stock: 97

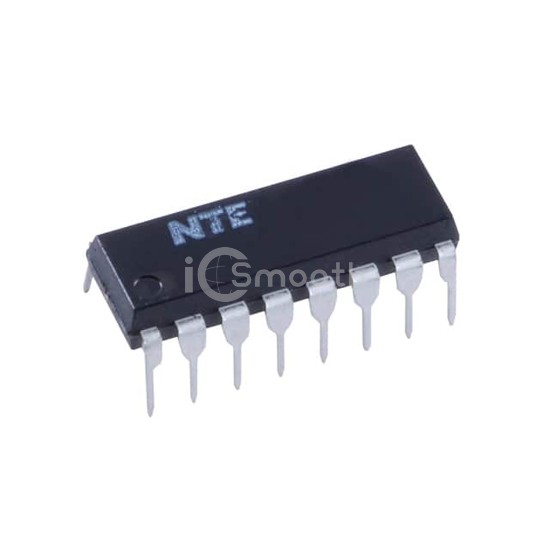

NTE74HC109 - NTE Electronics, Inc - Logic - Flip Flops
REF: NTE74HC109 NTE Electronics, Inc
NTE74HC109

NTE Electronics, Inc

IC FF JK TYPE DUAL 1BIT 16DIP

NTE74HC109 is a Logic - Flip Flops manufactured by NTE Electronics, Inc. IC FF JK TYPE DUAL 1BIT 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 16-DIP (0.260", 6.6mm).

Datasheet Request a Quote

In Stock: 97

Specifications

17 parameters
Product StatusActive
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency60 MHz
Max Propagation Delay @ V, Max CL30ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low5.2mA, 5.2mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)4 µA
Input Capacitance10 pF
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Supplier Device Package16-DIP
Package / Case16-DIP (0.260", 6.6mm)
