NTE7413

In Stock: 7,609

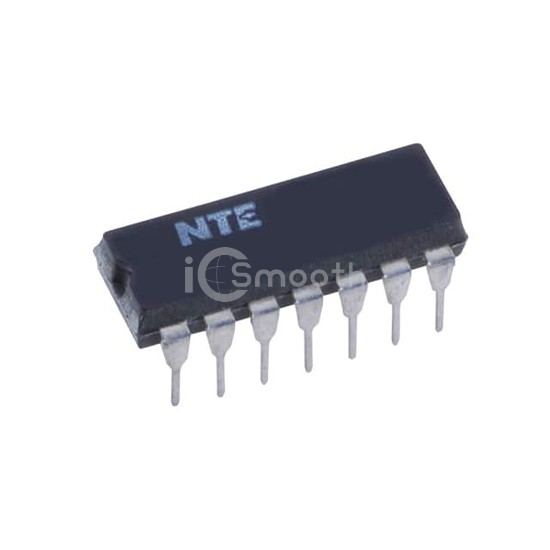

NTE7413 - NTE Electronics, Inc - Logic - Gates and Inverters
REF: NTE7413 NTE Electronics, Inc
NTE7413

NTE Electronics, Inc

IC-TTL DUAL NAND TRIG 14-LEAD

NTE7413 is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC-TTL DUAL NAND TRIG 14-LEAD. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,609

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs4
FeaturesSchmitt Trigger
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)32 mA
Current - Output High, Low800µA, 16mA
Logic Level - Low0.6V ~ 1.1V
Logic Level - High1.5V ~ 2V
Max Propagation Delay @ V, Max CL27ns @ 5V, 15pF
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Supplier Device Package14-PDIP
Package / Case14-DIP (0.300", 7.62mm)
