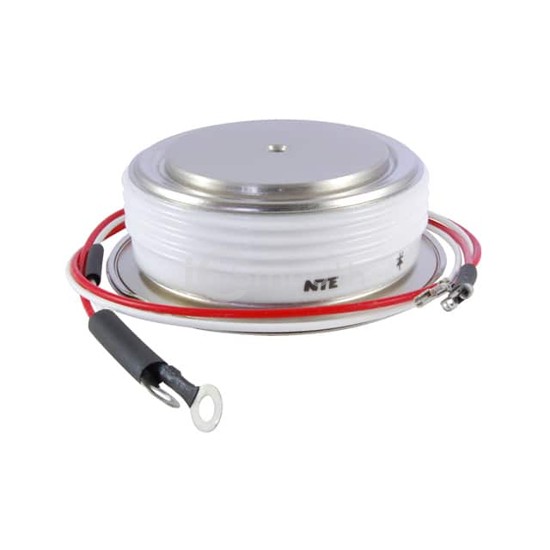

Name: NTE5599
Brand: NTE Electronics, Inc
SKU: NTE5599
Price: 492.77 USD
Availability: InStock

REF: NTE5599 NTE Electronics, Inc

NTE5599

SCR 1.2KV 2.79KA TO200AC

NTE5599 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.2KV 2.79KA TO200AC. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-200AC, K-PUK.

Datasheet Request a Quote

In Stock: 10

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Voltage - On State (Vtm) (Max)	1.35 V
Current - On State (It (AV)) (Max)	1.78 kA
Current - On State (It (RMS)) (Max)	2.79 kA
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	75 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	24650A, 27000A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	TO-200AC, K-PUK
Supplier Device Package	TO-200AC
