Name: NTE5589
Brand: NTE Electronics, Inc
SKU: NTE5589
Price: 309.40 USD
Availability: InStock

REF: NTE5589 NTE Electronics, Inc

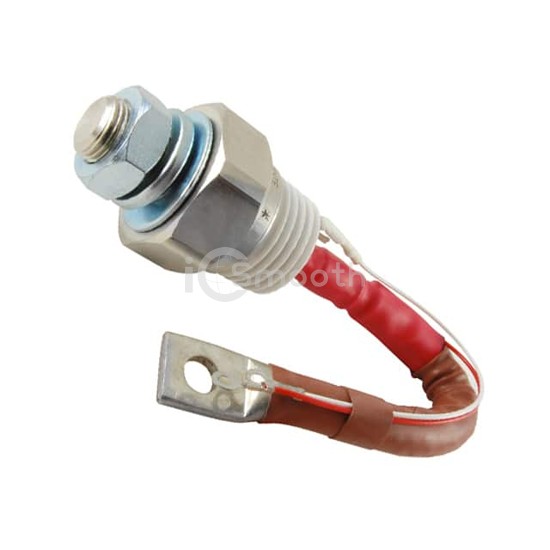

NTE5589

SCR 1.2KV 550A TO118

NTE5589 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.2KV 550A TO118. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-209AE, TO-118-4, Stud.

Datasheet Request a Quote

In Stock: 8

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.4 V
Current - On State (It (AV)) (Max)	350 A
Current - On State (It (RMS)) (Max)	550 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9100A, 10000A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-209AE, TO-118-4, Stud
Supplier Device Package	TO-118
