Name: NTE5588
Brand: NTE Electronics, Inc
SKU: NTE5588
Price: 227.00 USD
Availability: InStock

REF: NTE5588 NTE Electronics, Inc

NTE5588

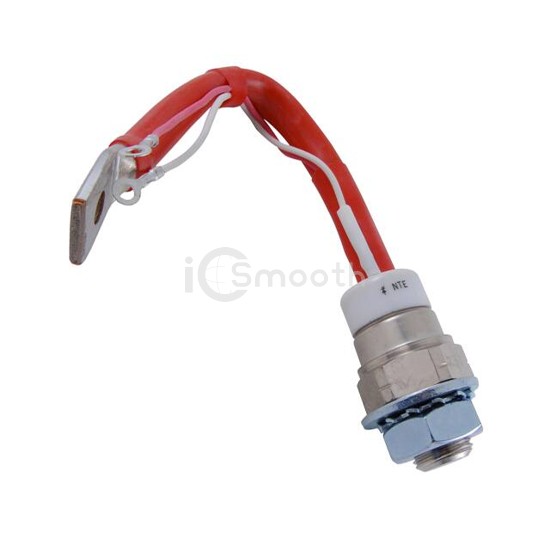

SCR 1.6KV 355A TO93

NTE5588 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.6KV 355A TO93. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-209AB, TO-93-4, Stud.

Datasheet Request a Quote

In Stock: 4

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.62 V
Current - On State (It (AV)) (Max)	355 A
Current - On State (It (RMS)) (Max)	355 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	20 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	4650A, 5120A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Stud Mount
Package / Case	TO-209AB, TO-93-4, Stud
Supplier Device Package	TO-93
