Name: NTE5586
Brand: NTE Electronics, Inc
SKU: NTE5586
Price: 170.35 USD
Availability: InStock

REF: NTE5586 NTE Electronics, Inc

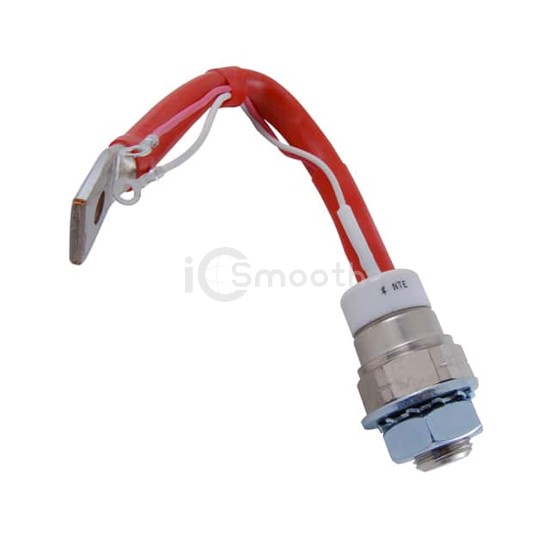

NTE5586

SCR 600V 360A TO93

NTE5586 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 600V 360A TO93. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-209AB, TO-93-4, Stud.

Datasheet Request a Quote

In Stock: 4

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.55 V
Current - On State (It (AV)) (Max)	230 A
Current - On State (It (RMS)) (Max)	360 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	4800A, 500A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-209AB, TO-93-4, Stud
Supplier Device Package	TO-93
