Name: NTE5585
Brand: NTE Electronics, Inc
SKU: NTE5585
Price: 272.67 USD
Availability: InStock

REF: NTE5585 NTE Electronics, Inc

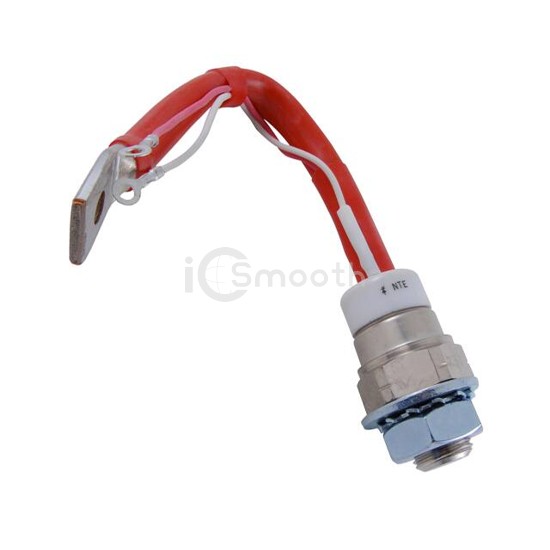

NTE5585

SCR 1.6KV 275A TO93

NTE5585 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.6KV 275A TO93. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-209AB, TO-93-4, Stud.

Datasheet Request a Quote

In Stock: 11

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.7 V
Current - On State (It (AV)) (Max)	150 A
Current - On State (It (RMS)) (Max)	275 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	3200A, 3500A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-209AB, TO-93-4, Stud
Supplier Device Package	TO-93
