Name: NTE5579
Brand: NTE Electronics, Inc
SKU: NTE5579
Price: 153.72 USD
Availability: InStock

REF: NTE5579 NTE Electronics, Inc

NTE5579

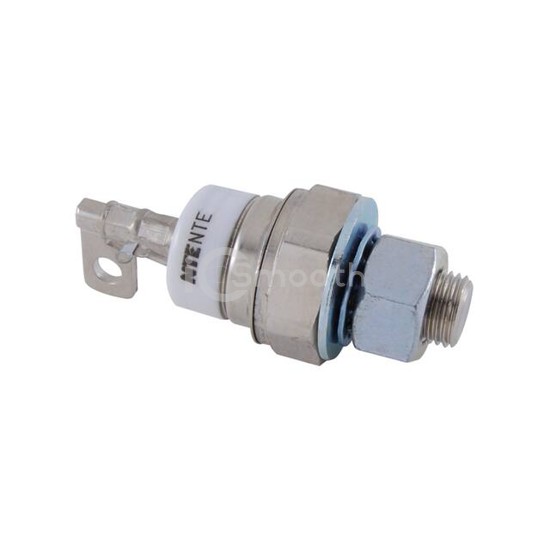

SCR 1.2KV 125A TO83

NTE5579 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.2KV 125A TO83. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-208AD, TO-83-3, Stud.

Datasheet Request a Quote

In Stock: 3

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	200 mV
Current - Gate Trigger (Igt) (Max)	125 mA
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	70 A
Current - On State (It (RMS)) (Max)	125 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	1400A, 1500A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AD, TO-83-3, Stud
Supplier Device Package	TO-83
