Name: NTE5576
Brand: NTE Electronics, Inc
SKU: NTE5576
Price: 94.64 USD
Availability: InStock

REF: NTE5576 NTE Electronics, Inc

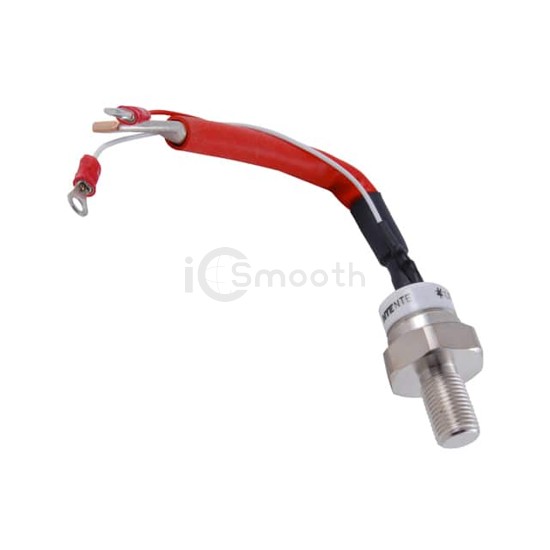

NTE5576

SCR 600V 175A TO94

NTE5576 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 600V 175A TO94. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-209AC, TO-94-4, Stud.

Datasheet Request a Quote

In Stock: 2,402

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.57 V
Current - On State (It (AV)) (Max)	110 A
Current - On State (It (RMS)) (Max)	175 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	20 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	24500A, 26950A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Stud Mount
Package / Case	TO-209AC, TO-94-4, Stud
Supplier Device Package	TO-94
