Name: NTE5571
Brand: NTE Electronics, Inc
SKU: NTE5571
Price: 44.29 USD
Availability: InStock

REF: NTE5571 NTE Electronics, Inc

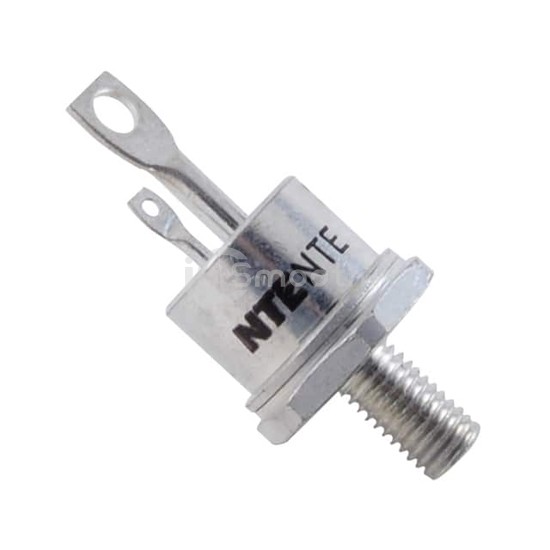

NTE5571

SCR 1.6KV 80A TO65

NTE5571 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.6KV 80A TO65. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-208AC, TO-65-3, Stud.

Datasheet Request a Quote

In Stock: 31

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	100 mA
Voltage - On State (Vtm) (Max)	1.78 V
Current - On State (It (AV)) (Max)	50 A
Current - On State (It (RMS)) (Max)	80 A
Current - Hold (Ih) (Max)	200 mA

Current - Off State (Max)	15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1200A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AC, TO-65-3, Stud
Supplier Device Package	TO-65
