Name: NTE5566
Brand: NTE Electronics, Inc
SKU: NTE5566
Price: 44.44 USD
Availability: InStock

REF: NTE5566 NTE Electronics, Inc

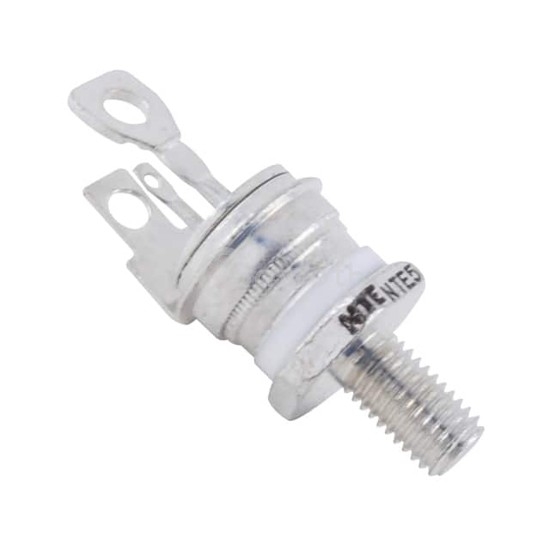

NTE5566

SCR 600V 35A TO48

NTE5566 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 600V 35A TO48. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 150°C, package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 60

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	-
Current - Gate Trigger (Igt) (Max)	30 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	35 A
Current - Hold (Ih) (Max)	50 mA

Current - Off State (Max)	2 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C
Mounting Type	Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-48 Isolated Stud
