Name: NTE5563
Brand: NTE Electronics, Inc
SKU: NTE5563
Price: 414.68 USD
Availability: InStock

REF: NTE5563 NTE Electronics, Inc

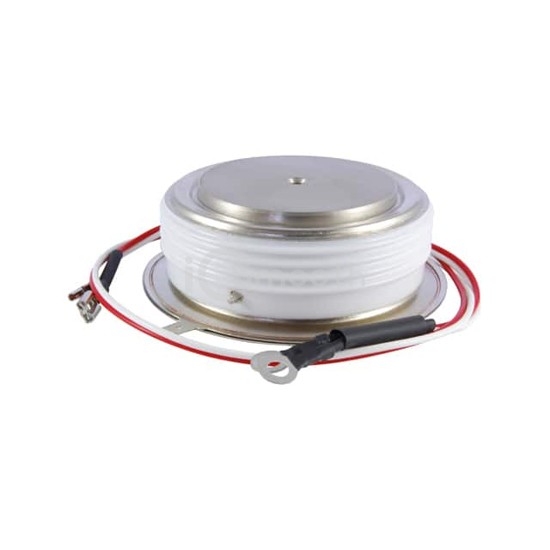

NTE5563

SCR 1.6KV 2.84KA TO200AC

NTE5563 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.6KV 2.84KA TO200AC. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AC, K-PUK.

Datasheet Request a Quote

In Stock: 3

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	300 mA
Voltage - On State (Vtm) (Max)	1.41 V
Current - On State (It (AV)) (Max)	1.4 kA
Current - On State (It (RMS)) (Max)	2.84 kA
Current - Hold (Ih) (Max)	1 A

Current - Off State (Max)	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20500A, 22550A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	TO-200AC, K-PUK
Supplier Device Package	TO-200AC
