Name: NTE5557
Brand: NTE Electronics, Inc
SKU: NTE5557
Price: 174.72 USD
Availability: InStock

REF: NTE5557 NTE Electronics, Inc

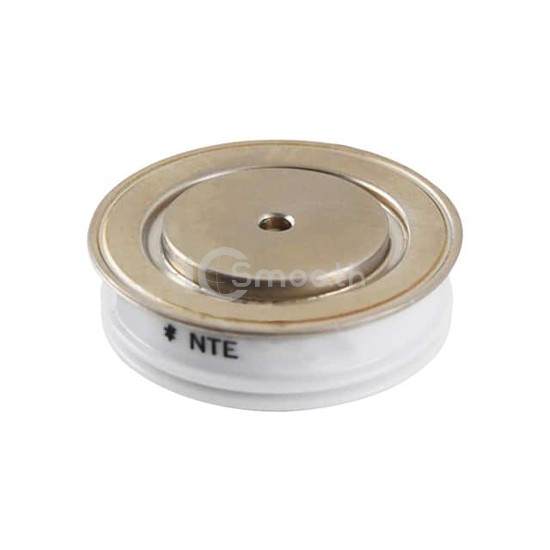

NTE5557

SCR 1.6KV 820A TO200AB

NTE5557 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.6KV 820A TO200AB. Key specifications: mounting type Chassis Mount, operating temperature 125°C (TJ), package / case TO-200AB, A-PUK.

Datasheet Request a Quote

In Stock: 12

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	735 A
Current - On State (It (RMS)) (Max)	820 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	6200A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	TO-200AB, A-PUK
Supplier Device Package	TO-200AB
