Name: NTE5553
Brand: NTE Electronics, Inc
SKU: NTE5553
Price: 127.40 USD
Availability: InStock

REF: NTE5553 NTE Electronics, Inc

NTE5553

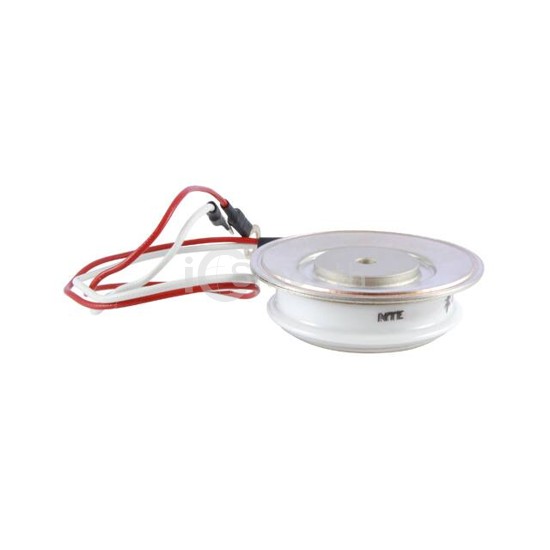

SCR 1.6KV 780A TO200AB

NTE5553 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.6KV 780A TO200AB. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AB, A-PUK.

Datasheet Request a Quote

In Stock: 13

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.75 V
Current - On State (It (AV)) (Max)	390 A
Current - On State (It (RMS)) (Max)	780 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	20 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	46500A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	TO-200AB, A-PUK
Supplier Device Package	TO-200AB
