Name: NTE5548
Brand: NTE Electronics, Inc
SKU: NTE5548
Price: 32.32 USD
Availability: InStock

REF: NTE5548 NTE Electronics, Inc

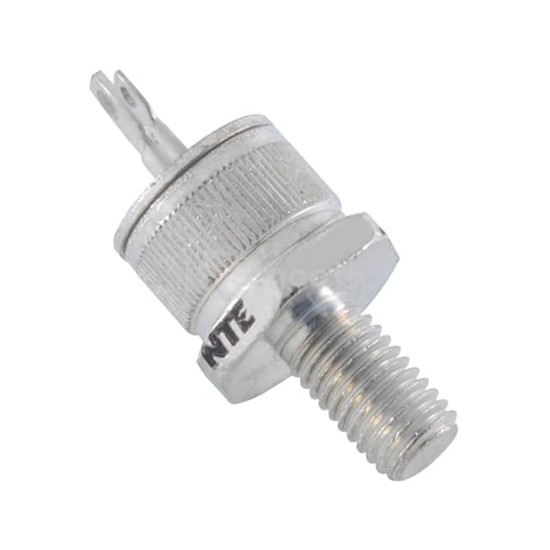

NTE5548

SCR 800V 35A TO48

NTE5548 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 800V 35A TO48. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 150°C, package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 29

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	30 mA
Voltage - On State (Vtm) (Max)	-
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	35 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	2 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C
Mounting Type	Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-48
