Name: NTE5539
Brand: NTE Electronics, Inc
SKU: NTE5539
Price: 11.27 USD
Availability: InStock

REF: NTE5539 NTE Electronics, Inc

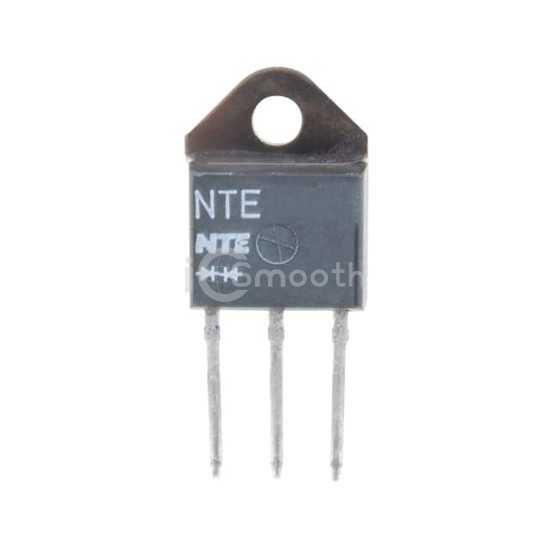

NTE5539

SCR 400V 55A TO218

NTE5539 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 400V 55A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218-3.

Datasheet Request a Quote

In Stock: 42

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3
Supplier Device Package	TO-218
