Name: NTE5538
Brand: NTE Electronics, Inc
SKU: NTE5538
Price: 19.06 USD
Availability: InStock

REF: NTE5538 NTE Electronics, Inc

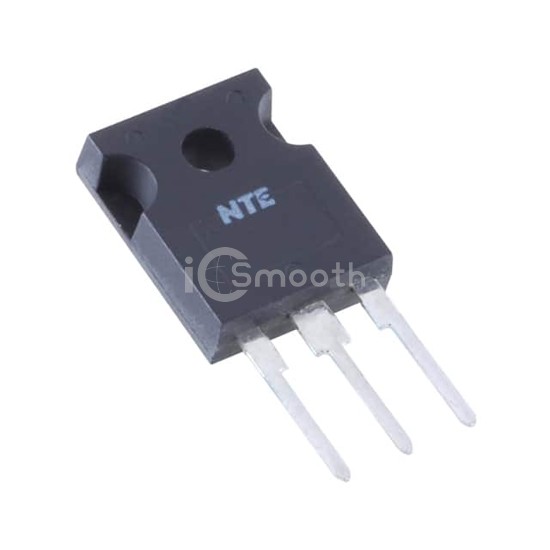

NTE5538

SCR 800V 50A TO218

NTE5538 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 800V 50A TO218. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218-3 Isolated Tab, TO-218AC.

Datasheet Request a Quote

In Stock: 50

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	60 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	180 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	500A, 525A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package	TO-218 Isolated
