Name: NTE5534A
Brand: NTE Electronics, Inc
SKU: NTE5534A
Price: 20.03 USD
Availability: InStock

REF: NTE5534A NTE Electronics, Inc

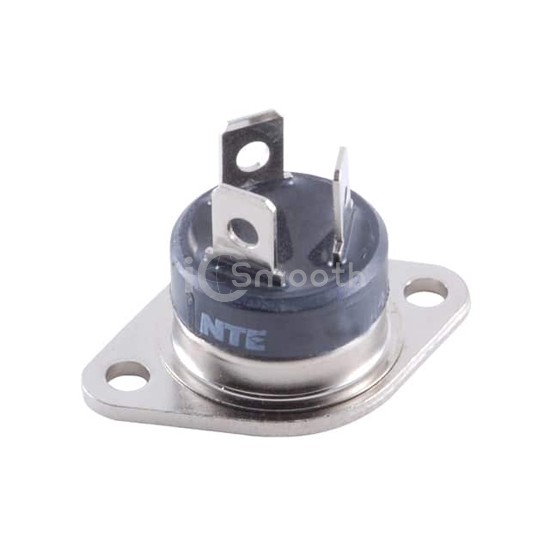

NTE5534A

SCR 600V 50A TO3

NTE5534A is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 600V 50A TO3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-3 Base.

Datasheet Request a Quote

In Stock: 356

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	80 mA
Voltage - On State (Vtm) (Max)	1.9 V
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	150 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 610A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	TO-3 Base
Supplier Device Package	TO-3 (Isolated Flange)
