Name: NTE5509
Brand: NTE Electronics, Inc
SKU: NTE5509
Price: 23.39 USD
Availability: InStock

REF: NTE5509 NTE Electronics, Inc

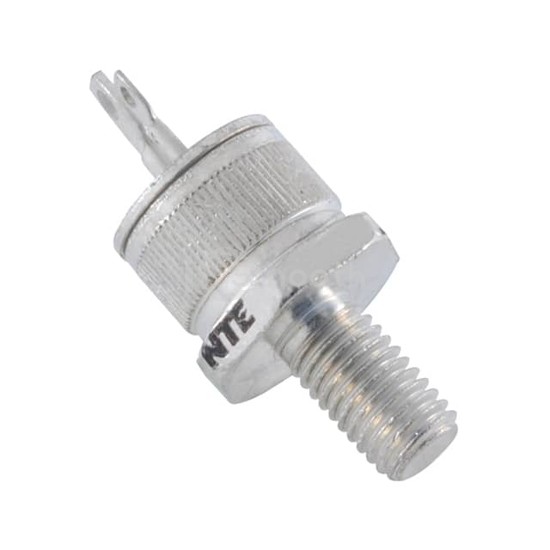

NTE5509

SCR 600V 16A TO48

NTE5509 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 600V 16A TO48. Key specifications: mounting type Stud Mount, operating temperature -65°C ~ 125°C (TJ), package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 24

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	25 mA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	25 A
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih) (Max)	20 mA

Current - Off State (Max)	4 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-48
