Name: NTE5499
Brand: NTE Electronics, Inc
SKU: NTE5499
Price: 3.40 USD
Availability: InStock

REF: NTE5499 NTE Electronics, Inc

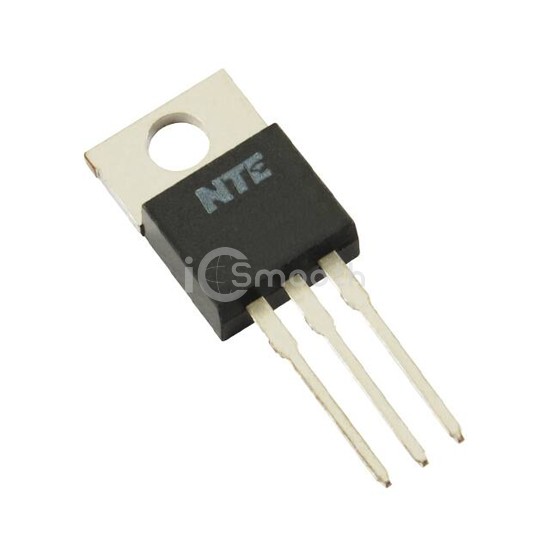

NTE5499

SCR 800V 12A TO220

NTE5499 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 800V 12A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-3.

Datasheet Request a Quote

In Stock: 134

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	10 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	7.6 A
Current - On State (It (RMS)) (Max)	12 A
Current - Hold (Ih) (Max)	40 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	120A, 132A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
