Name: NTE5491
Brand: NTE Electronics, Inc
SKU: NTE5491
Price: 8.15 USD
Availability: InStock

REF: NTE5491 NTE Electronics, Inc

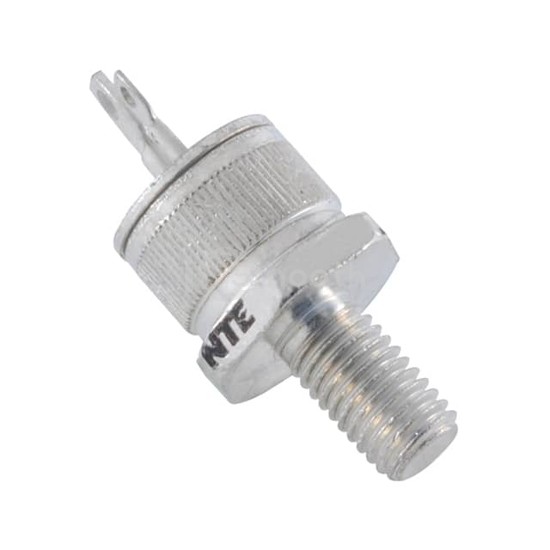

NTE5491

SCR 100V 25A TO48

NTE5491 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 100V 25A TO48. Key specifications: mounting type Stud Mount, operating temperature -65°C ~ 125°C (TJ), package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 2

Specifications

15 parameters

Product Status	Active
Voltage - Off State	100 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	2 A
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	16 A
Current - On State (It (RMS)) (Max)	25 A
Current - Hold (Ih) (Max)	50 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	150A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-48
