Name: NTE5453
Brand: NTE Electronics, Inc
SKU: NTE5453
Price: 1.11 USD
Availability: InStock

REF: NTE5453 NTE Electronics, Inc

NTE5453

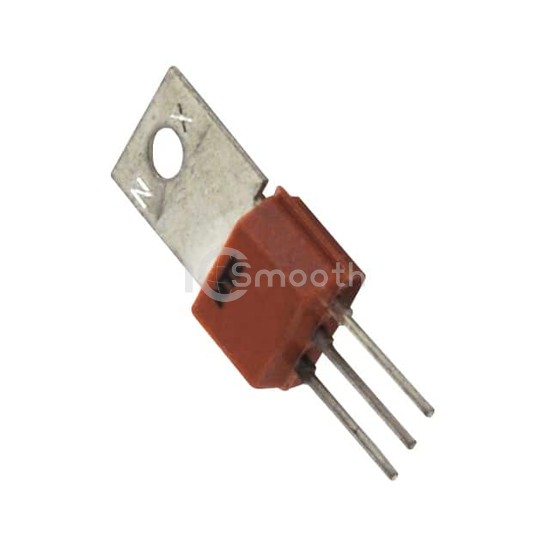

SCR 50V 4A TO202

NTE5453 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 50V 4A TO202. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case TO-202 Long Tab.

Datasheet Request a Quote

In Stock: 32

Specifications

15 parameters

Product Status	Active
Voltage - Off State	50 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	2.2 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	4 A
Current - Hold (Ih) (Max)	3 mA

Current - Off State (Max)	100 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A @ 60Hz
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	TO-202 Long Tab
Supplier Device Package	TO-202
