Name: NTE5427
Brand: NTE Electronics, Inc
SKU: NTE5427
Price: 7.90 USD
Availability: InStock

REF: NTE5427 NTE Electronics, Inc

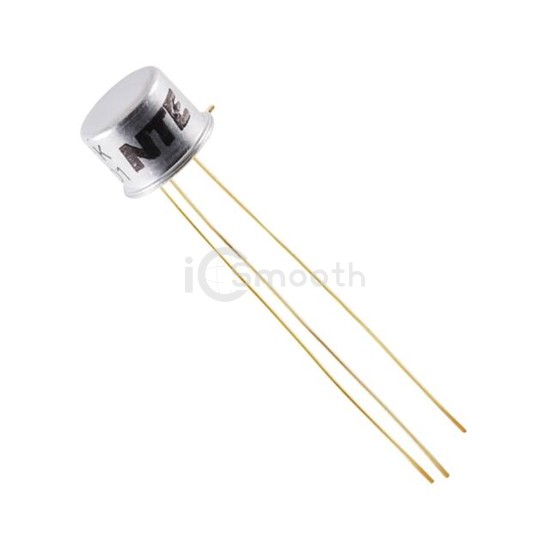

NTE5427

SCR 200V 7A TO39

NTE5427 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 200V 7A TO39. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, package / case TO-205AD, TO-39-3 Metal Can.

Datasheet Request a Quote

In Stock: 22

Specifications

15 parameters

Product Status	Active
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	25 mA
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	7 A
Current - Hold (Ih) (Max)	50 mA

Current - Off State (Max)	1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	80A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
