NTE5416

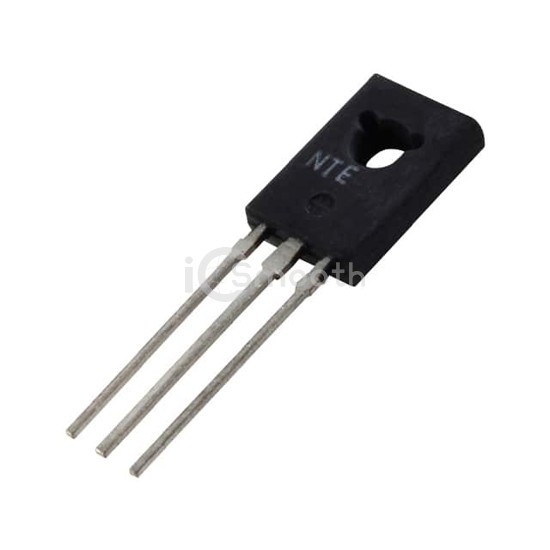

SCR 600V 4A TO126

NTE5416 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 600V 4A TO126. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (TJ), package / case TO-225AA, TO-126-3.

Datasheet Request a Quote

In Stock: 116

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1 V
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	2.2 V
Current - On State (It (AV)) (Max)	2.6 A
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih) (Max)	5 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	25A, 35A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	TO-126
