Name: NTE5378
Brand: NTE Electronics, Inc
SKU: NTE5378
Price: 473.74 USD
Availability: InStock

REF: NTE5378 NTE Electronics, Inc

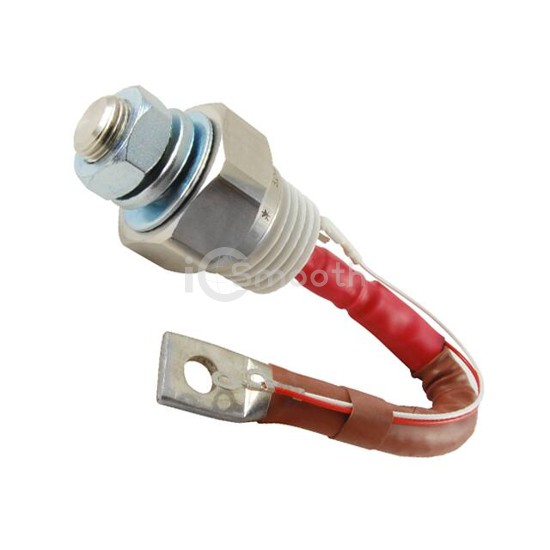

NTE5378

SCR-1200V 475A HI SPD

NTE5378 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR-1200V 475A HI SPD. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-209AE, TO-118-4, Stud.

Datasheet Request a Quote

In Stock: 7

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Voltage - On State (Vtm) (Max)	1.52 V
Current - On State (It (AV)) (Max)	330 A
Current - On State (It (RMS)) (Max)	520 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9000A, 9420A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-209AE, TO-118-4, Stud
Supplier Device Package	TO-118
