Name: NTE5368
Brand: NTE Electronics, Inc
SKU: NTE5368
Price: 221.21 USD
Availability: InStock

REF: NTE5368 NTE Electronics, Inc

NTE5368

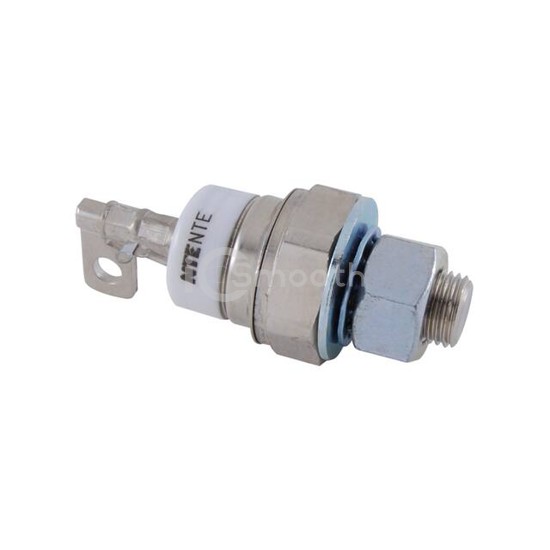

SCR-600V 135A HIGH SPEED

NTE5368 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR-600V 135A HIGH SPEED. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-208AD, TO-83-3, Stud.

Datasheet Request a Quote

In Stock: 4

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Voltage - On State (Vtm) (Max)	2.15 V
Current - On State (It (AV)) (Max)	85 A
Current - On State (It (RMS)) (Max)	135 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2450A, 2560A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Stud Mount
Package / Case	TO-208AD, TO-83-3, Stud
Supplier Device Package	TO-83
