NTE4522B

In Stock: 188

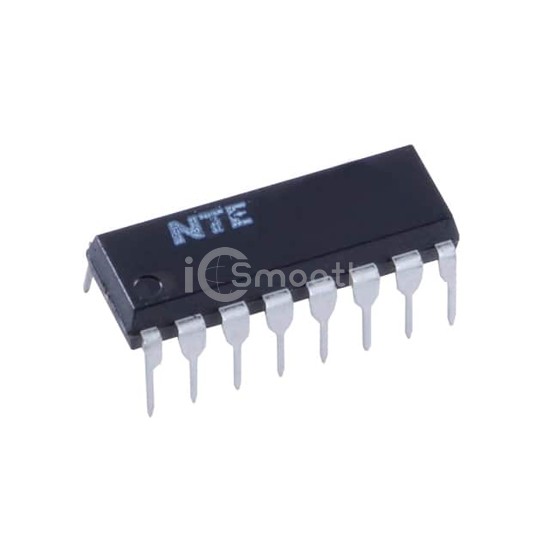

NTE4522B - NTE Electronics, Inc - Logic - Counters, Dividers
REF: NTE4522B NTE Electronics, Inc
NTE4522B

NTE Electronics, Inc

IC-CMOS 4-BIT COUNTER

NTE4522B is a Logic - Counters, Dividers manufactured by NTE Electronics, Inc. IC-CMOS 4-BIT COUNTER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 3 V ~ 18 V, package / case 16-DIP (0.260", 6.6mm).

Datasheet Request a Quote

In Stock: 188

Specifications

14 parameters
Product StatusActive
Logic TypeDivide-by-N
DirectionDown
Number of Elements1
Number of Bits per Element4
ResetAsynchronous
Timing-
Count Rate5 MHz
Trigger TypePositive, Negative
Voltage - Supply3 V ~ 18 V
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.260", 6.6mm)
Supplier Device Package16-DIP
