NTE4027B

In Stock: 212

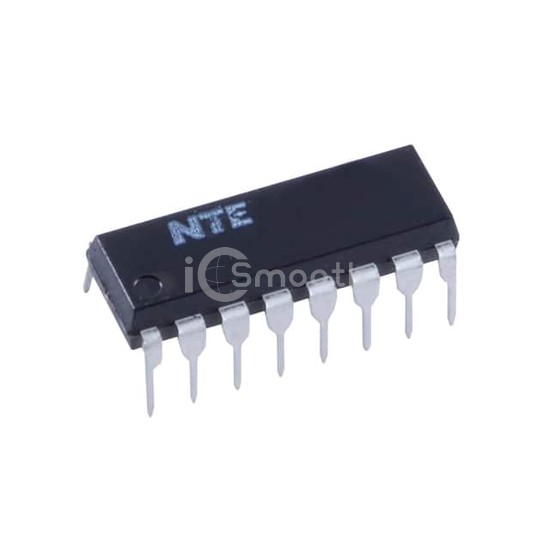

NTE4027B - NTE Electronics, Inc - Logic - Flip Flops
REF: NTE4027B NTE Electronics, Inc
NTE4027B

NTE Electronics, Inc

IC FF JK TYPE DUAL 1BIT 16DIP

NTE4027B is a Logic - Flip Flops manufactured by NTE Electronics, Inc. IC FF JK TYPE DUAL 1BIT 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 3V ~ 18V, package / case 16-DIP (0.260", 6.6mm).

Datasheet Request a Quote

In Stock: 212

Specifications

17 parameters
Product StatusActive
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency13 MHz
Max Propagation Delay @ V, Max CL100ns @ 15V, 50pF
Trigger TypePositive Edge
Current - Output High, Low8.8mA, 8.8mA
Voltage - Supply3V ~ 18V
Current - Quiescent (Iq)4 µA
Input Capacitance7.5 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package16-DIP
Package / Case16-DIP (0.260", 6.6mm)
