NTE4012BT

In Stock: 1,927

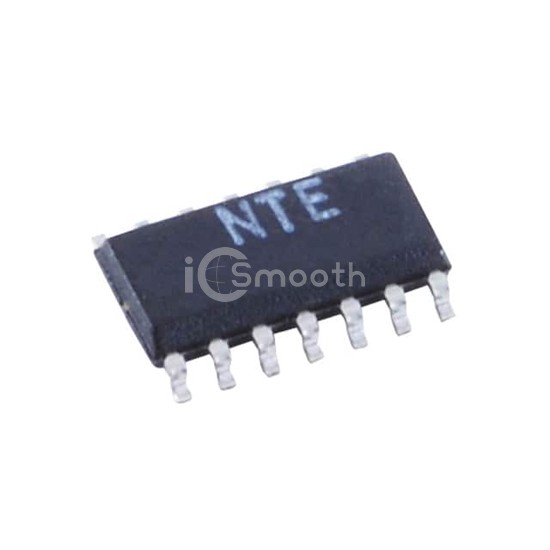

NTE4012BT - NTE Electronics, Inc - Logic - Gates and Inverters
REF: NTE4012BT NTE Electronics, Inc
NTE4012BT

NTE Electronics, Inc

IC GATE NAND 2CH 4-INP 14SOIC

NTE4012BT is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC GATE NAND 2CH 4-INP 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,927

Specifications

15 parameters
Product StatusActive
Logic TypeNAND Gate
Number of Circuits2
Number of Inputs4
Features-
Voltage - Supply3V ~ 18V
Current - Quiescent (Max)1 µA
Current - Output High, Low8.8mA, 8.8mA
Logic Level - Low1.5V ~ 4V
Logic Level - High3.5V ~ 11V
Max Propagation Delay @ V, Max CL100ns @ 15V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-SOIC
Package / Case14-SOIC (0.154", 3.90mm Width)
