NTE3323

In Stock: 73

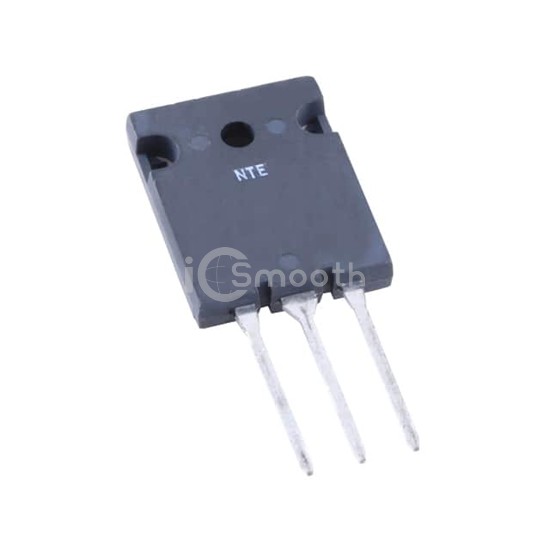

NTE3323 - NTE Electronics, Inc - Transistors - IGBTs - Single
REF: NTE3323 NTE Electronics, Inc
NTE3323

NTE Electronics, Inc

IGBT-1200V 25AMP

NTE3323 is a Transistors - IGBTs - Single manufactured by NTE Electronics, Inc. IGBT-1200V 25AMP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 73

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Current - Collector Pulsed (Icm)50 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 25A
Power - Max200 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C400ns/800ns
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
