NTE3322

In Stock: 12

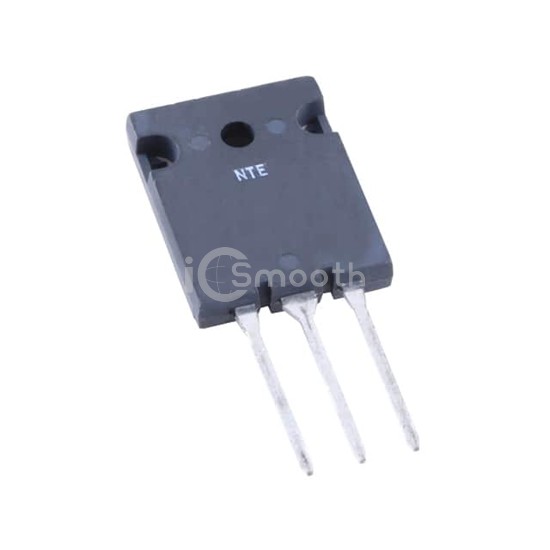

NTE3322 - NTE Electronics, Inc - Transistors - IGBTs - Single
REF: NTE3322 NTE Electronics, Inc
NTE3322

NTE Electronics, Inc

IGBT-900V 60AMP

NTE3322 is a Transistors - IGBTs - Single manufactured by NTE Electronics, Inc. IGBT-900V 60AMP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 12

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)900 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 60A
Power - Max170 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C460ns/600ns
Test Condition-
Reverse Recovery Time (trr)2.5 µs
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
