NTE3302

In Stock: 117

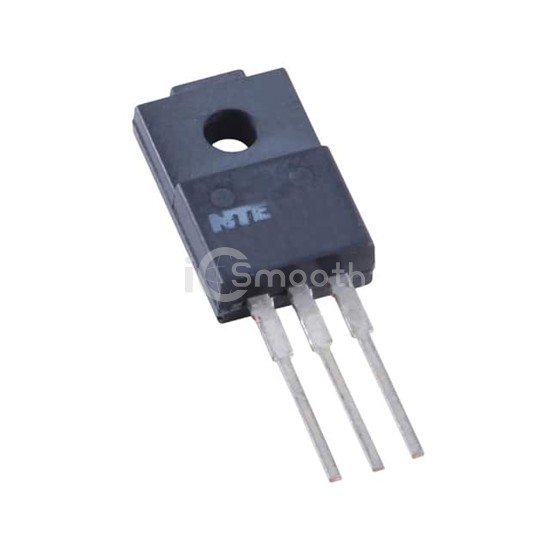

NTE3302 - NTE Electronics, Inc - Transistors - IGBTs - Single
REF: NTE3302 NTE Electronics, Inc
NTE3302

NTE Electronics, Inc

IGBT-N-CHAN ENHANCEMENT

NTE3302 is a Transistors - IGBTs - Single manufactured by NTE Electronics, Inc. IGBT-N-CHAN ENHANCEMENT. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 8 A.

Datasheet Request a Quote

In Stock: 117

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)8 A
Current - Collector Pulsed (Icm)16 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 8A
Power - Max30 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C400ns/500ns
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220 Full Pack
