NTE3301

In Stock: 24

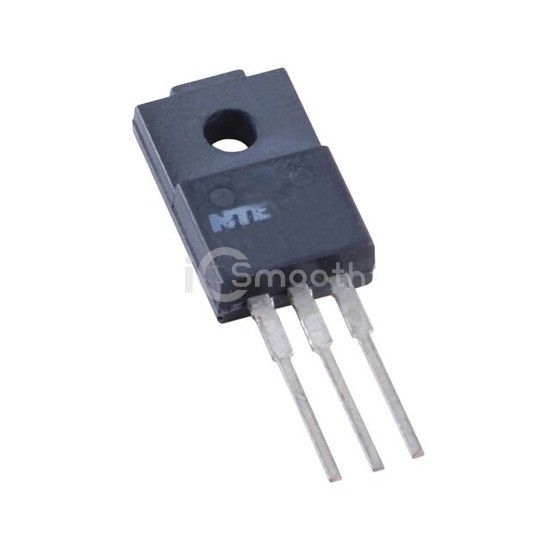

NTE3301 - NTE Electronics, Inc - Transistors - IGBTs - Single
REF: NTE3301 NTE Electronics, Inc
NTE3301

NTE Electronics, Inc

IGBT-N-CHAN ENHANCEMENT

NTE3301 is a Transistors - IGBTs - Single manufactured by NTE Electronics, Inc. IGBT-N-CHAN ENHANCEMENT. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 24

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)400 V
Current - Collector (Ic) (Max)15 A
Current - Collector Pulsed (Icm)170 A
Vce(on) (Max) @ Vge, Ic8V @ 20V, 170A
Power - Max40 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C150ns/450ns
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220 Full Pack
