Name: NTE3220
Brand: NTE Electronics, Inc
SKU: NTE3220
Price: 1.77 USD
Availability: InStock

REF: NTE3220 NTE Electronics, Inc

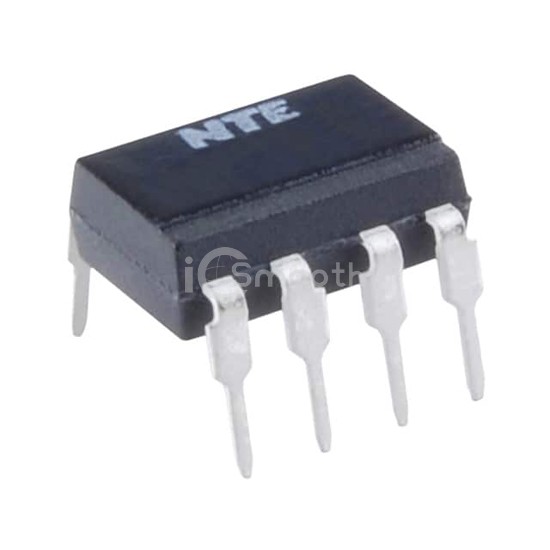

NTE3220

OPTOCOUPLER-NPN DUAL TRAN

NTE3220 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTOCOUPLER-NPN DUAL TRAN. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 421

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
