NTE315

In Stock: 3

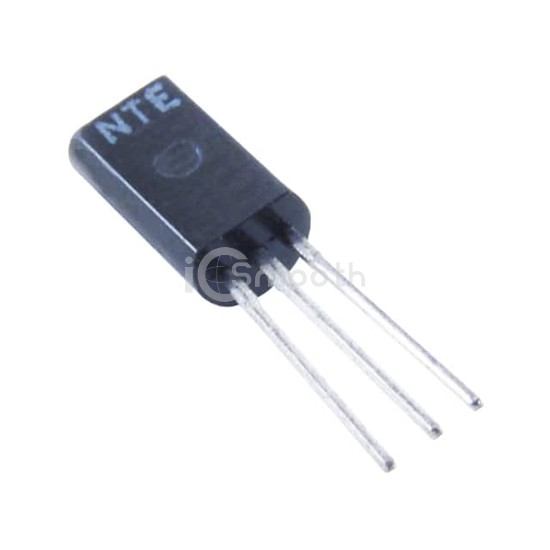

NTE315 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - Single
REF: NTE315 NTE Electronics, Inc
NTE315

NTE Electronics, Inc

TRANS NPN 50V 1A TO92L

NTE315 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 50V 1A TO92L. Key specifications: mounting type Through Hole, operating temperature 120°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 3

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic300mV @ 50mA, 1A
Current - Collector Cutoff (Max)200nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce199 @ 100mA, 2V
Power - Max750 mW
Frequency - Transition-
Operating Temperature120°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92L
