NTE314

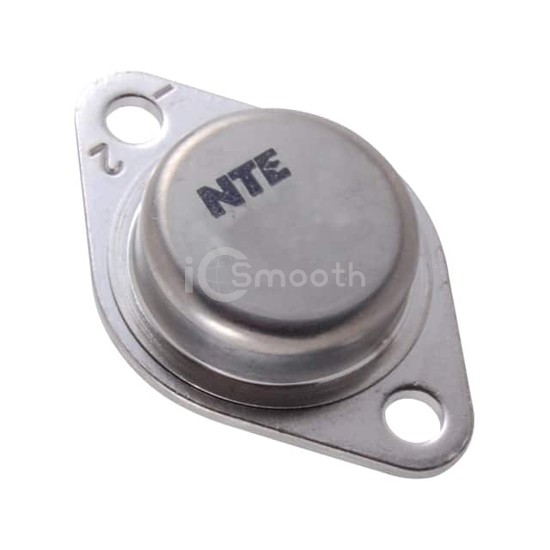

SCR 400V 12.5A TO3

NTE314 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 400V 12.5A TO3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (TJ), package / case TO-204AA, TO-3.

Datasheet Request a Quote

In Stock: 4

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	12.5 A
Current - Hold (Ih) (Max)	50 mA

Current - Off State (Max)	3 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 100°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-3
