NTE313

In Stock: 10

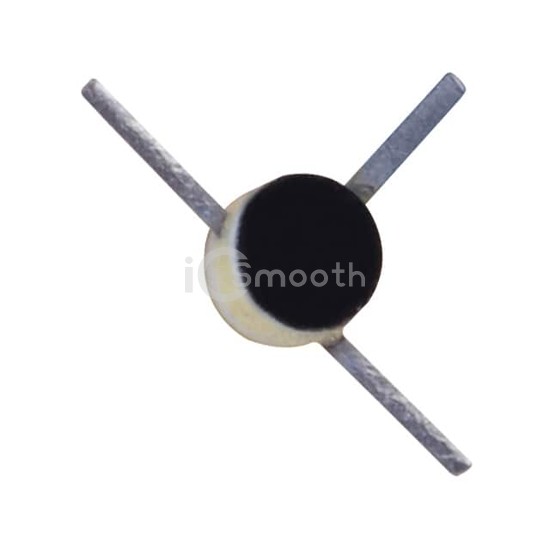

NTE313 - NTE Electronics, Inc - Transistors - Bipolar (BJT) - RF
REF: NTE313 NTE Electronics, Inc
NTE313

NTE Electronics, Inc

RF TRANS NPN 30V 530MHZ 3SMD

NTE313 is a Transistors - Bipolar (BJT) - RF manufactured by NTE Electronics, Inc. RF TRANS NPN 30V 530MHZ 3SMD. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Lead, current - collector (ic) (max) 20mA.

Datasheet Request a Quote

In Stock: 10

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)30V
Frequency - Transition530MHz
Noise Figure (dB Typ @ f)2.5dB @ 200MHz
Gain23dB
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 2mA, 10V
Current - Collector (Ic) (Max)20mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-SMD, Flat Lead
Supplier Device Package3-SMD
