Name: NTE3098
Brand: NTE Electronics, Inc
SKU: NTE3098
Price: 2.64 USD
Availability: InStock

REF: NTE3098 NTE Electronics, Inc

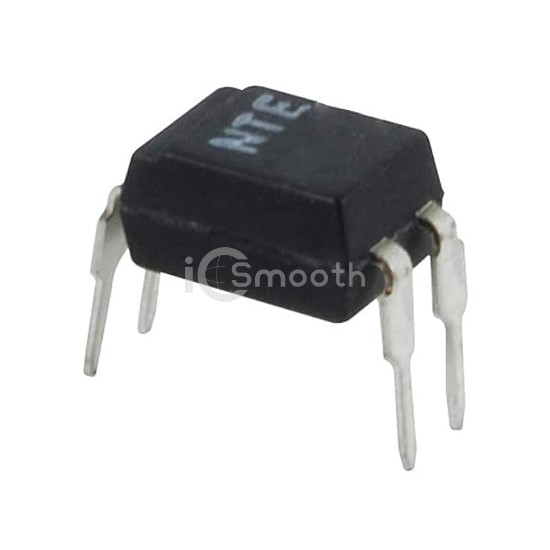

NTE3098

OPTO-ISOLATOR TRANS OUT

NTE3098 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTO-ISOLATOR TRANS OUT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 89

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	55V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
