Name: NTE3092
Brand: NTE Electronics, Inc
SKU: NTE3092
Price: 4.92 USD
Availability: InStock

REF: NTE3092 NTE Electronics, Inc

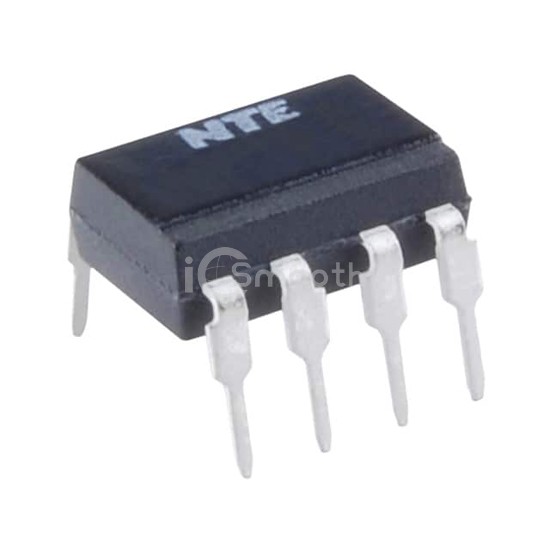

NTE3092

OPTOCOUPLER/TRANSISTOR

NTE3092 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTOCOUPLER/TRANSISTOR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.65V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 148

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	-
Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	500ns, 200ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	15V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
