Name: NTE3089
Brand: NTE Electronics, Inc
SKU: NTE3089
Price: 4.95 USD
Availability: InStock

REF: NTE3089 NTE Electronics, Inc

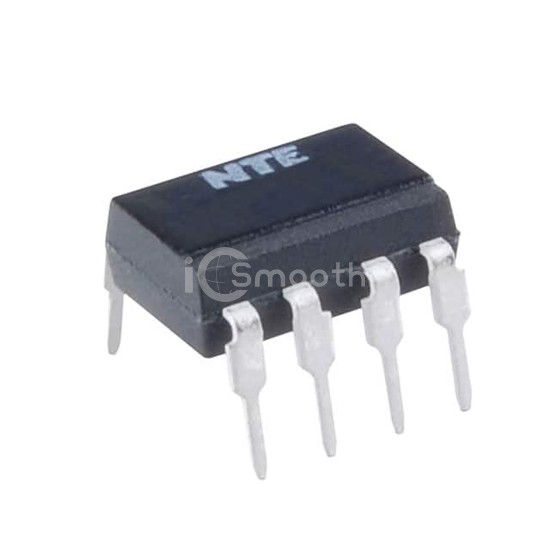

NTE3089

OPTOISOLATOR/TRANSISTOR

NTE3089 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTOISOLATOR/TRANSISTOR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - forward (vf) (typ) 1.5V (Max), package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 258

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	1500Vpk
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	AC, DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.5V (Max)
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
