Name: NTE3086
Brand: NTE Electronics, Inc
SKU: NTE3086
Price: 5.23 USD
Availability: InStock

REF: NTE3086 NTE Electronics, Inc

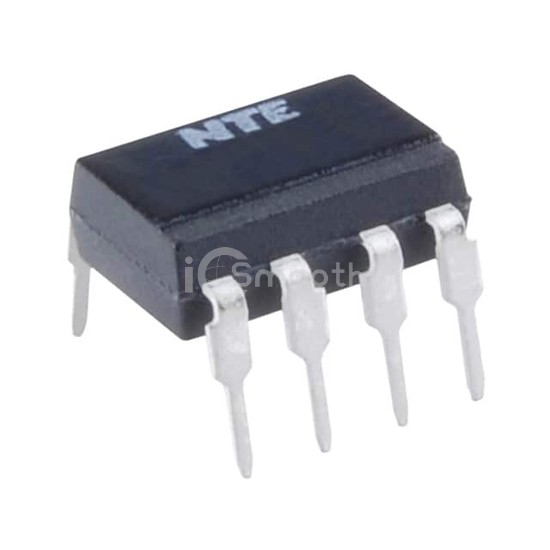

NTE3086

OPTOISOLATOR/TRANS

NTE3086 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTOISOLATOR/TRANS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	1500Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5s, 25s
Rise / Fall Time (Typ)	15s, 2.4s
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
