Name: NTE3042
Brand: NTE Electronics, Inc
SKU: NTE3042
Price: 1.73 USD
Availability: InStock

REF: NTE3042 NTE Electronics, Inc

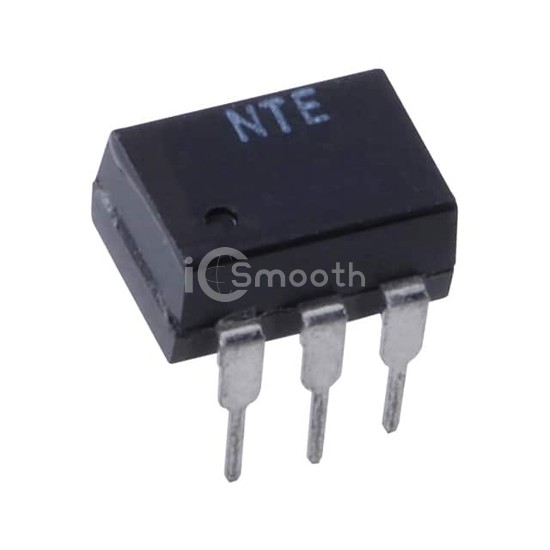

NTE3042

OPTOISOLATOR/TRANS

NTE3042 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTOISOLATOR/TRANS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 22

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	7500VAC
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	1.2µs, 1.2µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
