NTE3040

In Stock: 249

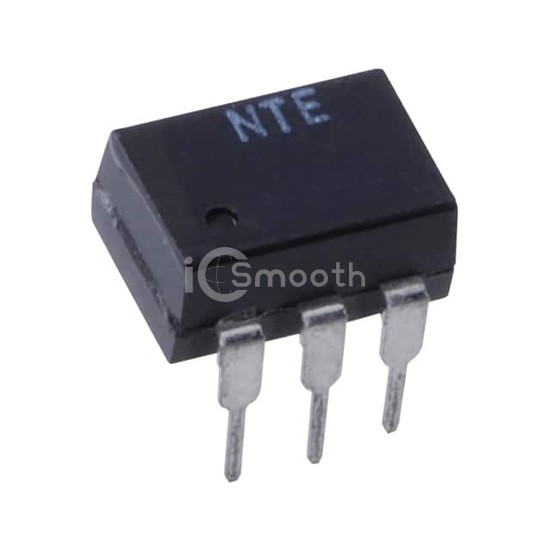

NTE3040 - NTE Electronics, Inc - Optoisolators - Transistor, Photovoltaic Output
REF: NTE3040 NTE Electronics, Inc
NTE3040

NTE Electronics, Inc

OPTOISOLATOR/TRANS

NTE3040 is a Optoisolators - Transistor, Photovoltaic Output manufactured by NTE Electronics, Inc. OPTOISOLATOR/TRANS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.18V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 249

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation7500VAC
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)2µs, 2µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)30V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.18V
Current - DC Forward (If) (Max)100 mA
Vce Saturation (Max)500mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
